Conveyor Belt Grinder

Name: Conveyor Belt Grinder
Brand: Powergrow Electricals LLP
Price: 80000.0 INR
Availability: InStock

Price 80000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Conveyor Belt Grinder Specification

Model
Powertech Conveyor Belt Grinder

Rotation
Single Direction (clockwise)

Product Type
Conveyor Belt Grinder

General Use
Surface grinding and metal finishing on conveyor belt

Material
Steel, Cast Iron, Industrial grade components

Type
Horizontal Grinder

Capacity
Medium batch grinding

Weight (kg)
Approx. 80 kg

Computerized
No

Automatic
No (Manual/Panel)

CNC Or Not
No

Control System
Manual/Panel based

Table Size
Approx. 300 mm x 600 mm

Table Slide Way
Rollers on conveyor belt

Grinding Wheel Size
Approx. 100 mm (Top Roller)

Grinding Wheel Speed
2800 RPM

Grinding Length
Variable, based on conveyor width

Floor Space
1200 mm x 600 mm

Spindle Speed
2800 RPM

Power
1.5 kW

Voltage
220V/380V

Dimension (L*W*H)
1200 mm x 600 mm x 700 mm

Feature
Efficient grinding with conveyor movement

Color
Grey & Blue

Application
Pipe, tube and flat sheet grinding

Cooling System
No cooling system (dry grinding)

Roller Type
Steel grooved roller

Finish Quality
Ra 1.6 achievable

Control Panel
LED indicators, toggle switches

Noise Level
Below 70 dB

Conveyor Belt Material
Rubberized industrial belt

Input Voltage
Single/Three phase compatible

Safety Features
Overload protection; emergency stop switch

Maintenance
Low maintenance, easy access rollers

Motor Brand
Powertech CE-certified

Belt Tension Adjustment
Manual screw tensioner

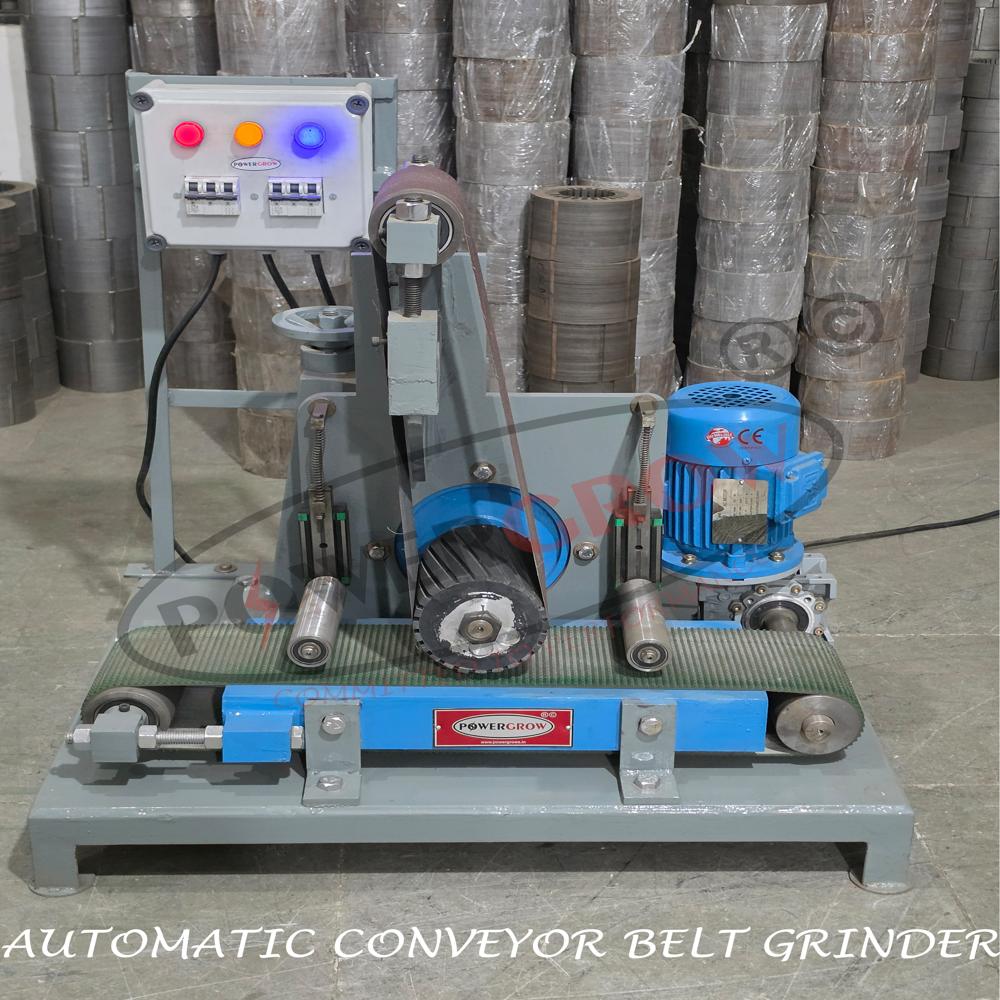

About Conveyor Belt Grinder

Select the first-class Powertech Conveyor Belt Grinder for commanding performance in medium batch grinding tasks. Buy online to experience monumental efficiency with a customizable conveyor width, ideal for surface grinding pipes, tubes, or flat sheets. Its robust rubberized industrial belt pairs with a Powertech CE-certified motor and grooved steel rollers for consistently top-quality finishes (Ra 1.6 achievable). Benefit from low noise (<70 dB), advanced safety features, manual belt tension adjustment, and LED control panel. Built with industrial-grade steel and cast iron, this grinder delivers reliable, low-maintenance operation in any workshop.

Versatility in Surface Grinding Applications

The Powertech Conveyor Belt Grinder excels at processing pipes, tubes, and flat sheets for superior surface finishing in industrial settings. Its medium-capacity design and adaptable conveyor belt make it ideal for consistent results on various metals. This horizontal grinder is perfect for workshops, metal fabrication plants, and maintenance departments seeking efficient, high-quality surface finishing using manual or panel-based controls.

Secure Packaging and Certified Supply

Shipped goods arrive in robust, protective packaging, ensuring your Powertech Conveyor Belt Grinder reaches you safely and ready for assembly. Our efficient supply chain enables quick dispatch and consistent stock availability, so your project timelines remain uninterrupted. Each unit is accompanied by Powertech's CE certification, attesting to its established quality and compliance with international industry standards for peace of mind during every purchase.

FAQ's of Conveyor Belt Grinder:

Q: How does the conveyor belt grinder ensure user safety during operation?

A: The grinder features built-in overload protection and an emergency stop switch, providing prompt response options to prevent accidents and safeguard the operator throughout the grinding process.

Q: What types of materials can I grind with this machine?

A: This conveyor belt grinder is engineered for surface grinding and finishing of steel, cast iron, pipes, tubes, and flat sheet metals, delivering consistent finishes suitable for industrial applications.

Q: Where can the Powertech Conveyor Belt Grinder be effectively used?

A: The machine is suitable for a wide array of sites such as metal fabrication workshops, manufacturing facilities, and maintenance departments handling medium batch, precision grinding and finishing tasks.

Q: What is the process for adjusting the belt tension?

A: The belt tension can be easily controlled with a manual screw tensioner, enabling precise adjustment to accommodate differing material thicknesses and desired grinding performance.

Q: What are the benefits of using the Powertech Conveyor Belt Grinder?

A: Users benefit from efficient material throughput, customizable conveyor width, reliable finishes with Ra 1.6 surface quality, reduced noise, and minimal maintenance requirements owing to its accessible roller design.
